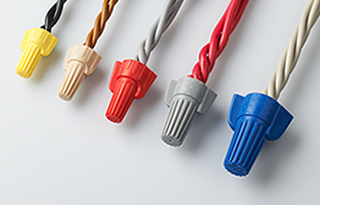

Screw-On Wire ConnectorsWinged Wire Connectors

●	UL 486C Listed and CSA 22.2 No.188 Certified.
●	Tough thermoplastic, UL 94V-2 flame-retardant shell.
●	Zinc plated square-wire spring.
●	Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
●	Five color-coded to industry standards.
●	No pre-twisting required, push stripped conductors into connector and screw on.
●	For use in electrical appliances, lighting and building wiring.

Model No.	Color	Electrical Ratings	Wire Range	Packing
P11V	Yellow	600 V Max. 105°C (221°F)	18-10 AWG, Cu Max. 3 #12 Min. 2 #18	500 Pcs/Bag 5,000 Pcs/Ctn
P12	Tan	600 V Max. 105°C (221°F)	22-8 AWG, Cu Max. 4 #12 Min. 3 #22 Sol	500 Pcs/Bag 5,000 Pcs/Ctn
P13	Red	600 V Max. 105°C (221°F)	22-8 AWG, Cu Max. 2 #8 Min. 4 #22	500 Pcs/Bag 5,000 Pcs/Ctn
P15	Grey	600 V Max. 105°C (221°F)	18-8 AWG, Cu Max. 3 #10 Min. 3 #14 w/1 #18	250 Pcs/Bag 2,500 Pcs/Ctn
P17	Blue	600 V Max. 105°C (221°F)	14-6 AWG, Cu Max. 3 #8 w/1 #12 Min. 3 #12	100 Pcs/Bag 1,500 Pcs/Ctn
